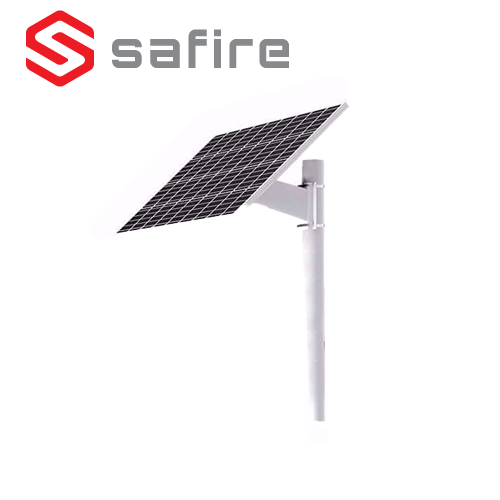

Safire SF-SOLARKIT-BATT-256WH komplet solarni panel sa baterijom

Ostavi komentar o proizvodu.

Online kupovina

Stara cena ~~67.116,96 din~~

Cena 55.035,91 din

Cena sa uračunatim PDV-om

-18% Popust Ušteda 12.081,05 din

Količina:

Lista želja

Uporedi

Podeli

Štampaj

Sigurna online kupovina

Dostava prema uslovima isporuke

Pomoć pri izboru opreme

SF-SOLARKIT-BATT-256WH

Samostalni sistem napajanja za CCTV Solarni panel do 60W

Specifikacije:

Solar panel module	60W
Battery	Lithium LiFePo 256wh
Solar input voltage	18V
Load voltage	9~12.6V
Maximum input power	Up to 120W in total
Maximum current load	10A
Maximum load supported	20W
Regulator	Integrated MPPT
Communication	RS485 (For integration with third parties). Provides all system information such as load level, system status or power consumption
Output Voltage	12V Integrated DC Regulator (with standard jack connector compatible with CCTV cameras)
Bracket	Support for mast or vertical infrastructure mounting
SOLARNI PANEL
Power	60 W
Cells	156 monocrystalline
Optimum Voltage	18V
Optimum operating current	3.33A
Short-circuit voltage	3.66V
Open circuit voltage	21.24V
Glass thickness	3.2mm
Power tolerance (W)	±3%
Maximum load capacity	60 m/s (5Kg/sg.m)
Maximum hail load	23m/s, 7.53g
Efficiency	21.6%
Temperature Range	-20ºC ~ 85ºC
Module dimensions	680 (W) x 30 (H) x 510 (D) mm
Weight	4 Kg (with battery)
Degree of protection	IP67
BATERIJA
Material	LiFePo
Capacity	20Ah (256Wh)
Nominal voltage	12.8V
Operating temperature	Charge: 0 °C to 65 °C (32 °F to 140 °F) Discharge: -30 °C to 65 °C (-22 °F to 140 °F)
Cycles	>2000
Battery size	205 (W) x 40 (H) x 100 (D) mm
Degree of protection	IP67
