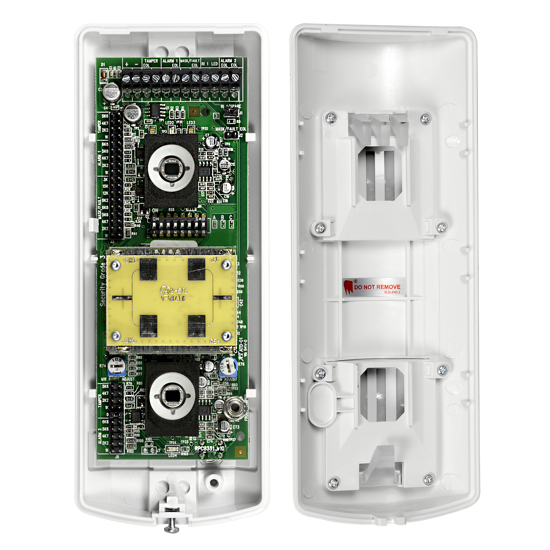

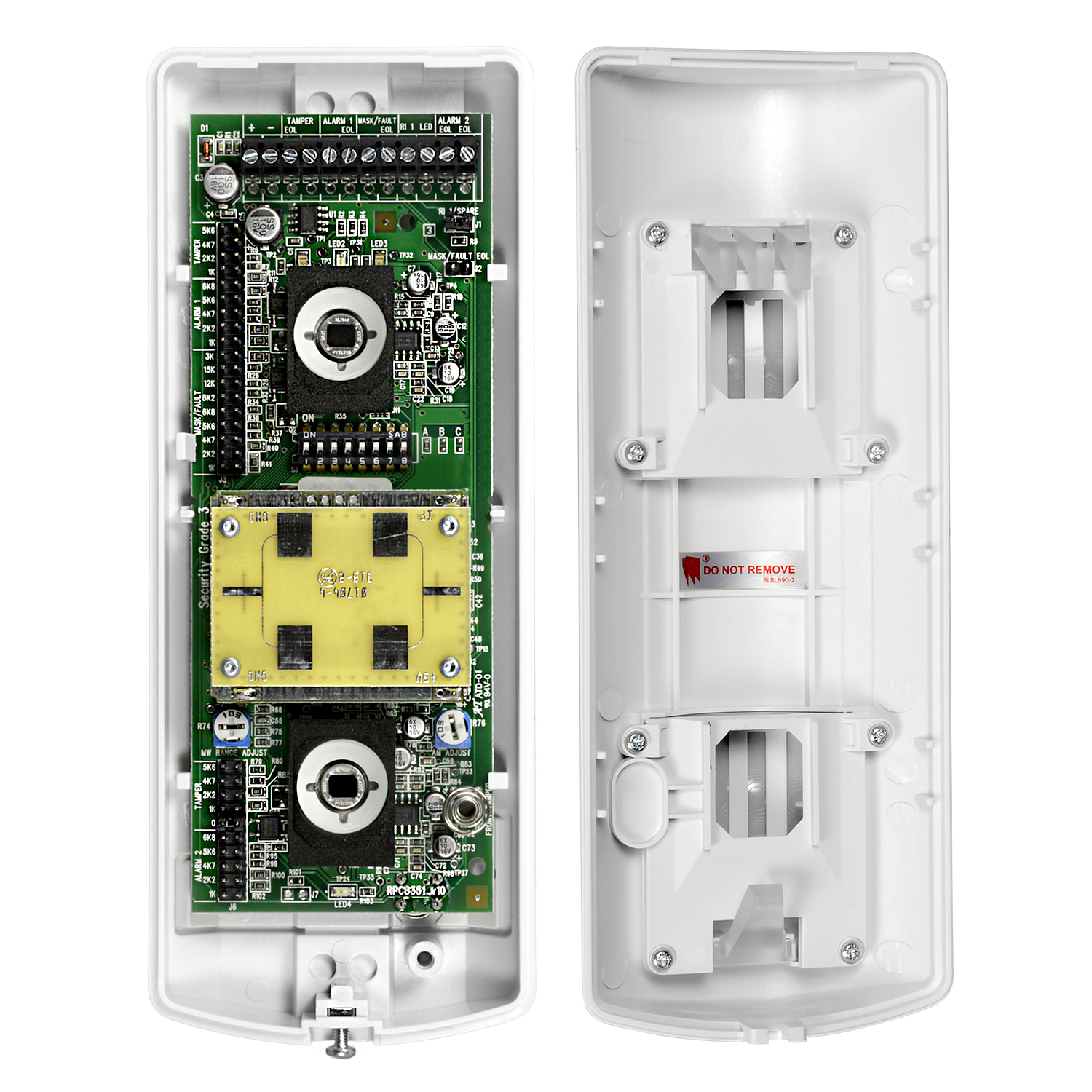

Model: TMD15 detektor PIR
Trostruka tehnologija PIR detekcije; Funkcija protiv maskiranja; Integrisani EOL otpornik; 2 infracrvena, 1 mikrotalasni senzor; Domet detekcije 15m; Grade 3 sertifikat;
Specifikacije:
| Technology |
2 x PIR and 1 x Microwaves |
| Security grade |
Grade 3 |
| PIR lens |
54 zones and 6 planes |
| Detection range |
15 m / 90º for installation height = 2.4 m |
| Pet immunity |
No |
| Masking |
Adjustable from 0 to 1 m |
| Sensitivity |
Adjustable Automatic or High |
| Detection speed |
0.25~2.5 m/s |
| Relay Output |
3 x SELV, DC 60 V 50 mA |
| Tamper switch |
Front and rear, DC 12 V 50 mA |
| Temp. operation |
-10º C ~ 40º C |
| Dimensions (without bracket) |
190 (H) x 82 (W) x 82 (D) mm |
