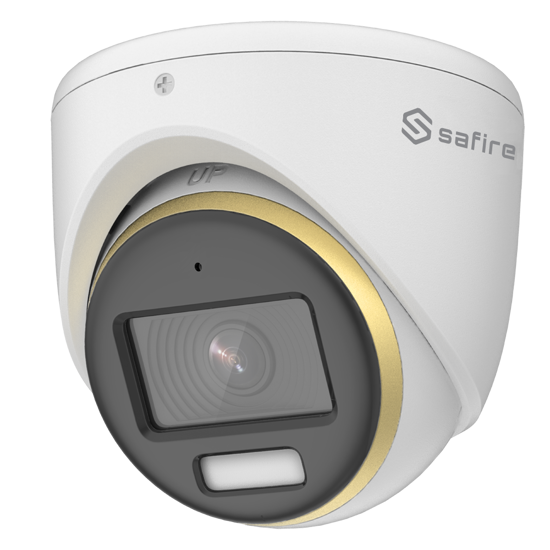

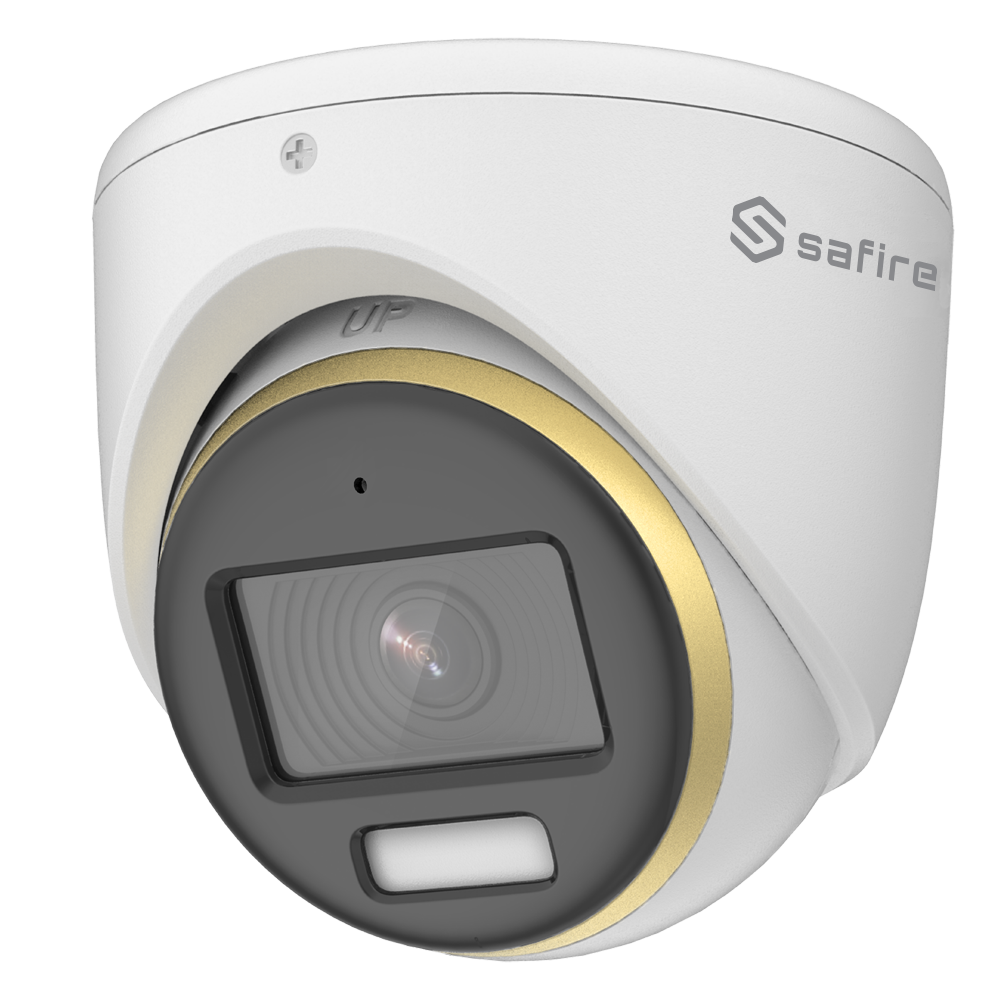

Safire SF-T943WCA-2U4N1 ColorVU turret kamera 2,8mm 2MP
Night color kombinacija sočiva visoke osvetljenosti i izuzetno osetljivog senzora podešena za oštre slike u boji čak i nocću bez potrebe za IC diodama. Slika u boji pruža dodatne ključne informacije više nego crno bele slike. Široki dinamički opseg (WDR) koji rešava svaku situaciju pozadinskog osvetljenja ili visokog svetlosnog kontrasta.
Specifikacije:
| Image Sensor |
2 MP CMOS |
| Signal System |
PAL/NTSC |
| Resolution |
1920 (H) 1080 (V) |
| Frame Rate |
TVI: 1080p @ 25 fps/30 fps
CVI: 1080p @ 25 fps/30 fps
AHD: 1080p @ 25 fps/30 fps
CVBS: PAL/NTSC |
| Min. Illumination |
0.0005 Lux @ (F1.0 AGC ON) 0 Lux with white light |
| Shutter Time |
PAL: 1/25 s to 1/50000 s;NTSC: 1/30 s to 1/50000 s |
| Slow Shutter |
Max. 16 times |
| Lens |
2.8 mm fixed focal lens |
| Field of View |
2.8 mm horizontal FOV: 98 vertical FOV: 52 diagonal FOV: 116
3.6 mm horizontal FOV: 77 vertical FOV: 42 diagonal FOV: 91 |
| Lens Mount |
M12 |
| Light Alarm |
Solid Light Alarm (White Light) |
| Day & Night |
24/7 Color Imaging |
| WDR (Wide Dynamic Range) |
>130 dB |
| Angle Adjustment |
Pan: 0 to 360 Tilt: 0 to 90 Rotation: 0 to 360 |
| White Light |
Auto/Off |
| Image Mode |
STD/HIGHSAT/HIGHLIGHT |
| AGC |
Yes |
| Day/Night Mode |
Color |
| White Balance |
Auto/Manual |
| AE (Auto Exposure) Mode |
WDR;BLC;HLC;Global;HLS |
| Privacy Mask |
4 programmable privacy masks |
| Motion Detection |
4 programmable motion areas |
| Noise Reduction |
3D DNR/2D DNR |
| Language |
English |
| Function |
Defective Pixel Correction;Sharpness;Mirror;Contrast;Brightness;AntiBanding;Smart Light |
| Video Output |
Switchable TVI/AHD/CVI/CVBS |
| Audio In |
Builtin mic |
| Operating Conditions |
40C to 60C (40F to 140F) Humidity: 90% or less (noncondensing) |
| Power Supply |
12 VDC 25%
*You are recommended to use one power adapter to supply the power for one camera. |
| Consumption |
Max. 3.0 W |
| Protection Level |
IP67 |
| Material |
Metal |
| White Light Range |
Up to 20 m |
| Communication |
SafireC |
| Dimension |
161.1 mm 70 mm 70 mm (6.34\" 2.76\" 2.76\") |
| |
Approx. 388 g (0.86 lb.) |
