| Brand |
Duevi |
| Model |

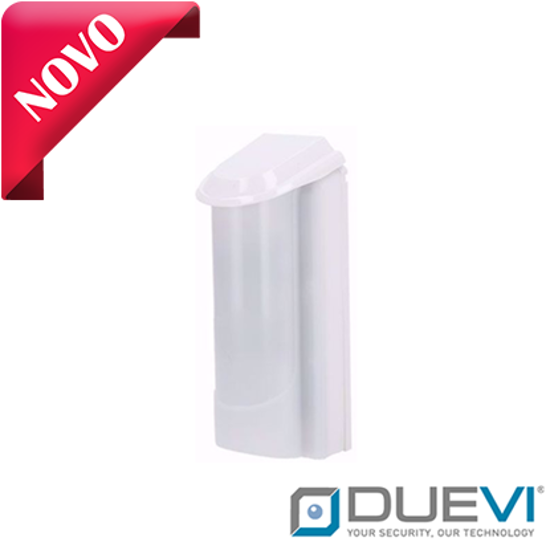

Monolith F |
| Technology |
Double volumetric PIR |
| PIR lens |
Both lenses horizontally adaptable up to 55º |
| Detection range |
Configurable: 3 m to 15 m (in 6 levels) / 90º |
| Pet immunity |
Available (installation height 1.2 ~ 1.3 m) |
| Installation height |
From 1.2 m to 2.2 m |
| Masking |
Available: from 0ºC, always on (through App) or disabled |
| Sensitivity |
Adjustable (3 levels) |
| Tamper-resistant opening |
Available |
| Anti-sabotage tamper |
Available (motion accelerometer) |
| LEDs indication |
Alarm (blue) and Walk test (red): Upper IR / green: Lower IR / blue: alarm confirmation) |
| DIP Switch configuration |
1- Walk-test (On/Off)
2- Alarm unification in one output (On/Off) |
| Configuration in detector (LEDs and buttons) |
Sensitivity / Anti-masking / Anti-sabotage tamper / Mounting height / Pet immunity / Detection range (more info page). 9 manual in download section) |
| Additional configuration in App |
Antimasking (from 0ºC, always on or disabled) / Antimasking sensitivity / Sleep time (On/Off/Up to 60 s) |
| Configuration by App |
DV-BTLINK module required and download View Sensor App (Android) |
| Wired outputs |
Alarm, Tamper and Antimasking |
| Power |
9.6 at 14.5 VDC |
| Temp. operation |
-40 ºC ~ +70 ºC |
| Degree of protection |
IP54, Antivandalic IK10 |
| Dimensions |
201 (H) x 79 (W) x 81 (D) mm |
